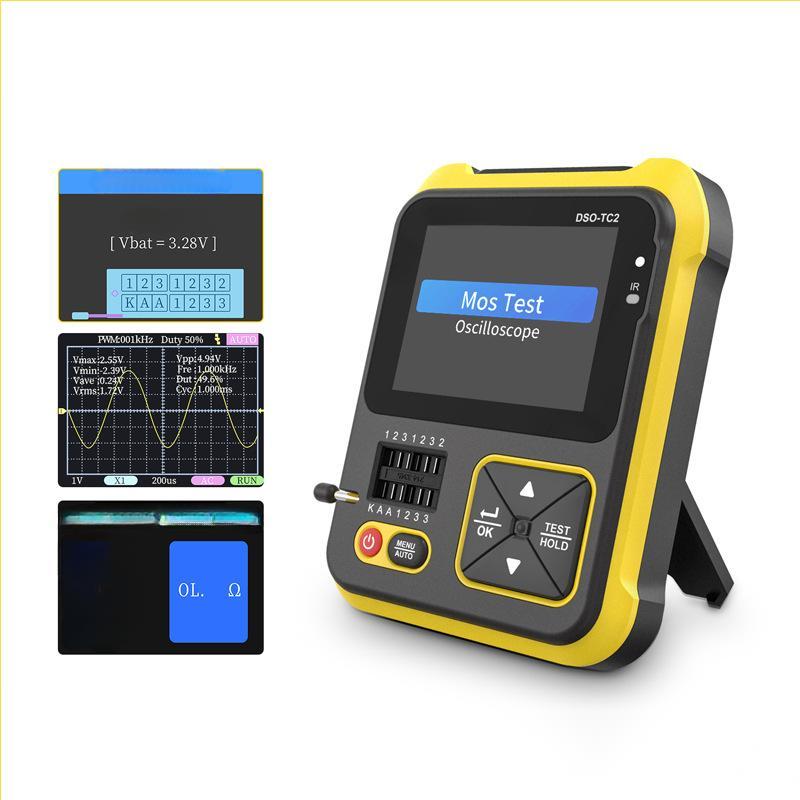

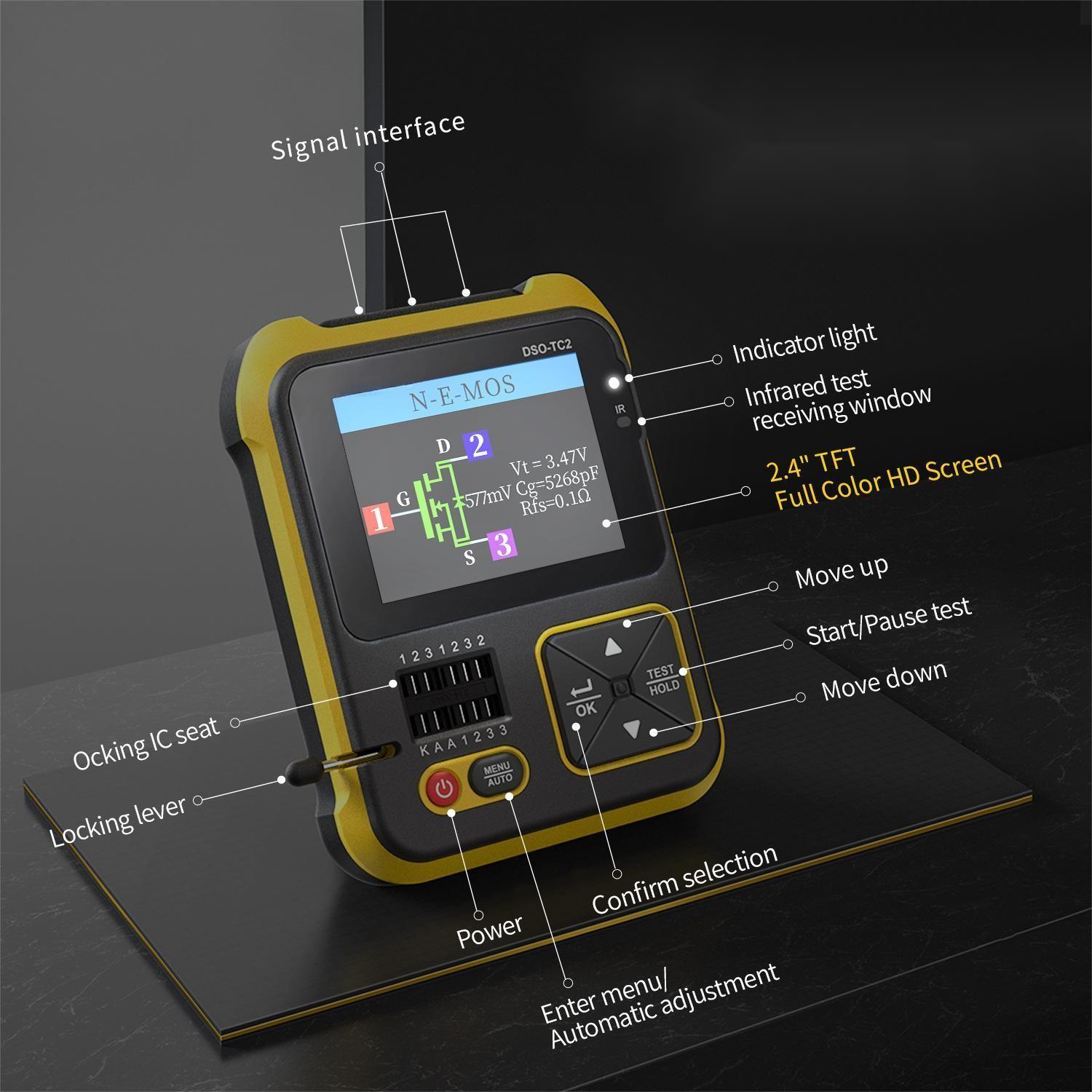

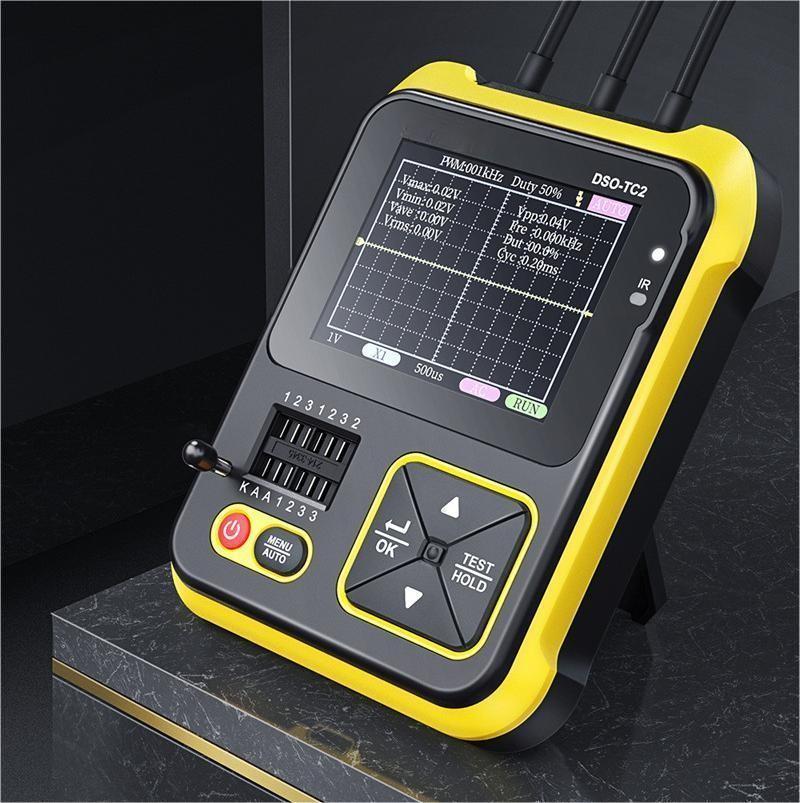

Handheld Digital Oscilloscope Portable Electronic Transistor Tester

(2 customer reviews)

$98$105



Share it:

Product information:

Case material: ABS

Bandwidth: 0.2 (MHz)

Sampling rate: 2.5 (GS/s)

Dimensions: 103x79x31 (mm)

Specification: Standard TC2, high TC2

Analog bandwidth: 0~200kHz

Input impedance: 1MQ

Coupling mode: AC/DC

Test voltage range: 1:1 Probe: 80Vpp (+40V)

Vertical displacement: adjustable with indication

Horizontal time base range: 10us/DV~500s/Div (progressive by 1-2-5)

Trigger mode: Auto, Normal and Single (Auto/Normal/Single)

Trigger type: rising edge, falling edge

Trigger level: adjustable with indication

Waveform freezing: Yes (HOLD function)

Automatic measurement: maximum value, minimum value, average value, effective value, peak to peak value, frequency, cycle, duty cycle


Features:

Automatic identification and measurement of various transistors, including NPN and PNP transistors, N channel and P channel field effectors, junction field effectors, diodes, double diodes, SCR, and resistance, inductance, capacitance and other passive components


Packing list:

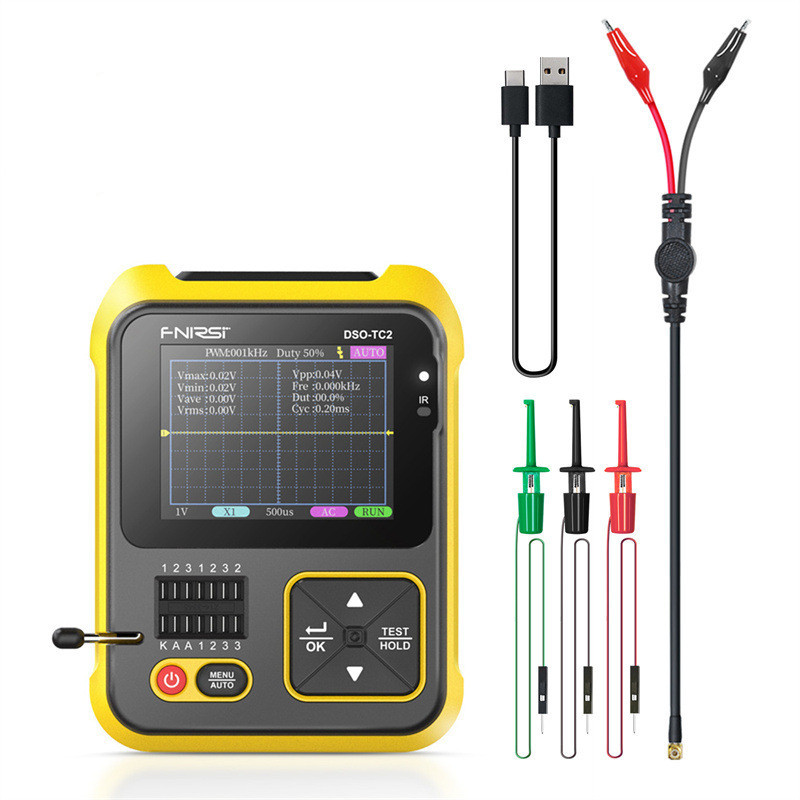

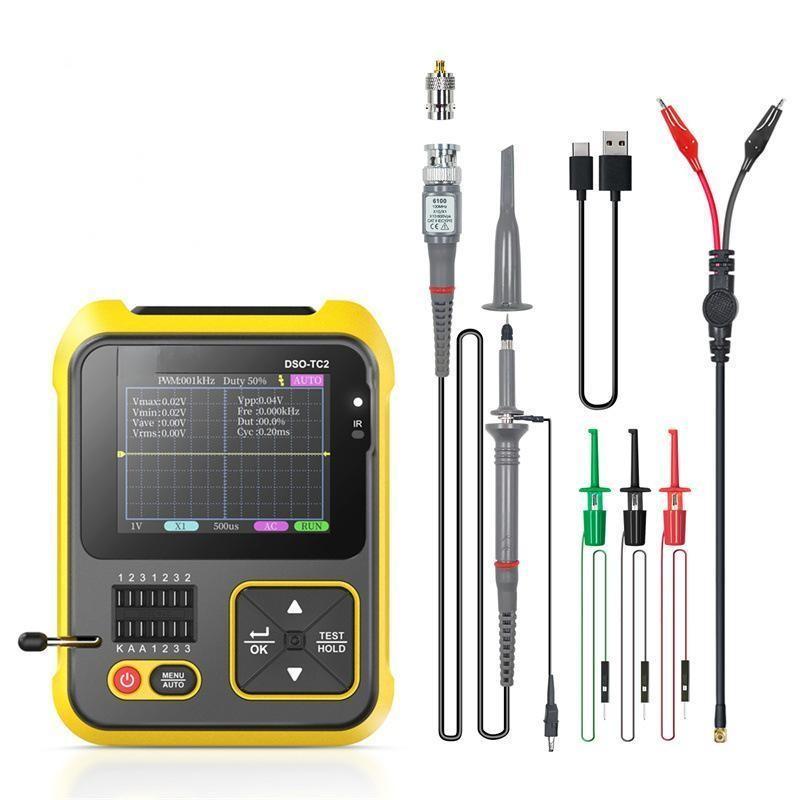

DSO-TC2 tester *1pc,P6100 high voltage probe *1pc, test hook *3pcs, adapter *1pc, packaging box *1pc, ordinary probe *1pc,Type-c charging line *1pc, instruction manual *1pc








11

12

13

14

15

16

17

Weight0.28 kg
Dimensions140 × 130 × 70 cm
Color

TC2 standard, TC2 high configuration
